Hobby Page posted: 2015-04-27 15:45

    Radio control has been around since Nikola Tesla
demonstrated a remote control boat in 1898. World War II saw increased development in radio control technology. The Luftwaffe used
controllable winged bombs for targeting Allied ships. During the 1930s the Good brothers Bill and Walt pioneered vacuum tube based
control units for R/C hobby use. Their 'Guff' radio controlled plane is on display at the National Aerospace museum. Ed Lorenze
published a design in Model Airplane News that was built by many hobbyists. Later, after WW2, in the late 1940s to mid 1950 many
other R/C designs emerged and some were sold commercially, Berkeley's Super Aerotrol, was one such example.
Originally simple 'on-off' systems, these evolved to use complex systems of relays to control a rubber powered escapement's speed
and direction. In another more sophisticated version developed by the Good brothers called TTPW, information was encoded by varying
the signal's mark/space ratio (pulse proportional). Commercial versions of these systems quickly became available. The tuned reed
system brought new sophistication, using metal reeds to resonate with the transmitted signal and operate one of a number of different
relays. In the 1960s the availability of transistor-based equipment led to the rapid development of fully proportional servo-based
systems, again driven largely by amateurs but resulting in commercial products. In the 1970s, integrated circuits made the electronics
small, light and cheap enough for multi-channel fully proportional control to become widely available.
In the 1990s miniaturised equipment became widely available, allowing radio control of the smallest models, and by the 2000s radio
control was commonplace even for the control of inexpensive toys. At the same time the ingenuity of modellers has been sustained
and the achievements of amateur modelers using new technologies has extended to such applications as gas-turbine powered aircraft,
aerobatic helicopters and submarines.
Before radio control, many models would use simple burning fuses or clockwork mechanisms to control flight or sailing times. Sometimes
clockwork controllers would also control and vary direction or behaviour. Other methods included tethering to a central point (popular
for model cars and hydroplanes), round the pole control for electric model aircraft and control lines (called u-control in the US) for
internal combustion powered aircraft.
The first general use of radio control systems in models started in the late 1940s with single-channel self-built equipment; commercial
equipment came soon thereafter. Initially remote control systems used escapement, (often rubber driven) mechanical actuation in the
model. Commercial sets often used ground standing transmitters, long whip antennas with separate ground poles and single vacuum tube
receivers. The first kits had dual tubes for more selectivity. Such early systems were invariably super regenerative circuits, which
meant that two controllers used in close proximity would interfere with one another. The requirement for heavy batteries to drive tubes
also meant that model boat systems were more successful than model aircraft.
My first fly in the sky Page posted: 2015-05-21 19:45

Specs
Wingspan | 1880mm |
Length | 821mm |
ESC | 5A |
Flying Weight | 1440g |
Motor | 2pc. Brushed Main Motor |
Prop | 2pc. 8x4 |
Servo | 2x21g |

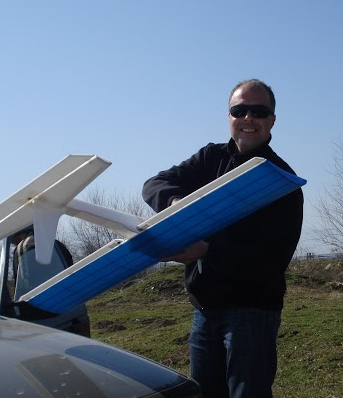

This plane with curved profile of the wing proved very successful model. It has a large lift,
which allows him, despite his great weight to fly completely excluded engines under light breeze.
For this model with two engine I developed my own speed controller.

Second model - plane acrobat Page posted: 2015-05-22 13:06

Specs
Wingspan | 1100mm |
Length | 1200mm |
ESC | 10A |
Flying Weight | 720g |
Motor | Brushless outrunner motor |
Prop | 9x4 |
Servo | 3x12g |


|
